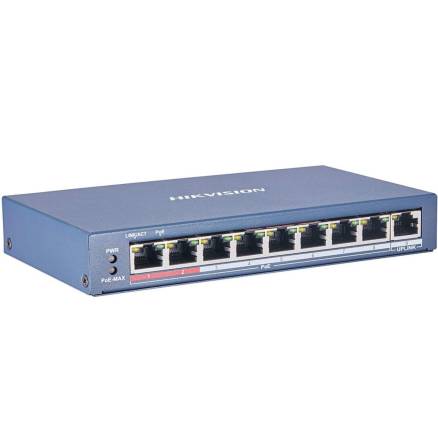

Hikvision DS-3E0109P-E/M(B) 8 Port PoE Switch

Hikvision DS-3E0109P-E/M(B) 8 Port PoE Switch

Teknik Özellikler:
Portlar:8 × 10/100 Mbps PoE port,1 × 10/100 Mbps RJ45 port
Port Type: RJ45 port, full duplex, MDI/MDI-X adaptive
Working Mode: Standard mode (default); Extend mode
Standard: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
Forwarding Mode: Store-and-forward switching
High Priority Ports: Ports 1 to 2
MAC Address Table: 2 K
Switching Capacity: 1.8 Gbps
Packet Forwarding Rate: 1.339 Mpps
Internal Cache: 1 Mbits
Ports For Long-Distance Transmission: Ports 1 to 8

PoE Power Supply
PoE Standard: IEEE 802.3af, IEEE 802.3at
PoE Power Pin: End-span: 1/2(-), 3/6(+)
Mid-span: 4/5(+), 7/8(-)
8-pin power: 1/2(-), 3/6(+), 4/5(+), 7/8(-)
PoE Port: Ports 1 to 8
Max. Port Power: 30 W
PoE Power Budget: 60 W

Boyutlar: 170 mm × 27.6 mm × 93.1 mm (6.7” × 1.1” × 3.7”)
